Projection Welding
Best of Manufacturing
Note:
- Milco offers upper and lower fastener detection for all units.
- All Milco machines are built exactly to the customers specifications.
- All machines are built to OSHA standard.
Machines

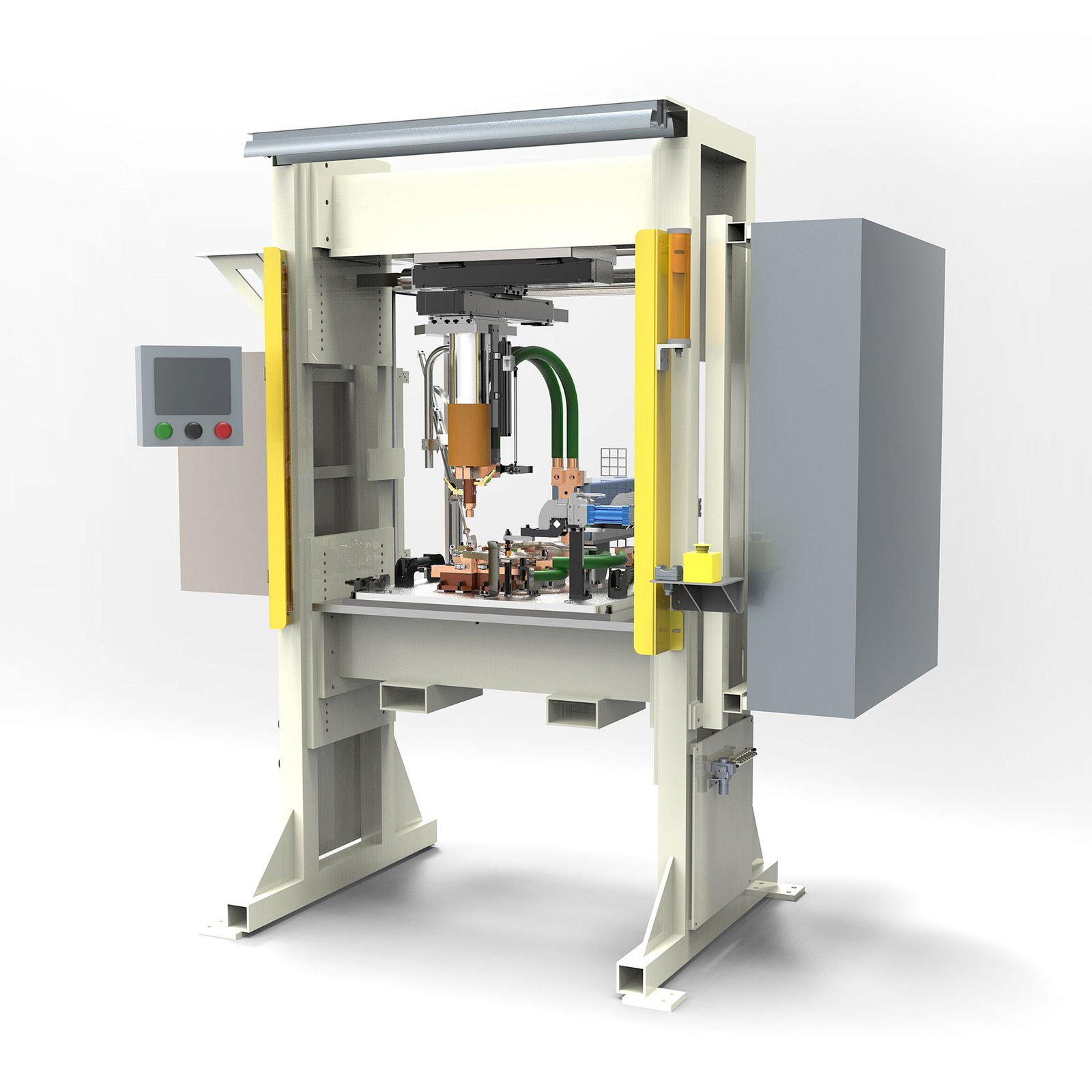

A Frame Projection Welding Machine
- Single, dual or triple transformer option
- Quantity of weld cylinders can be from 1 up to 6
- Three standard frame sizes
- Quick change tooling option
- Servo or air slide options
- Part eject options
A Frame Projection Welding Machine

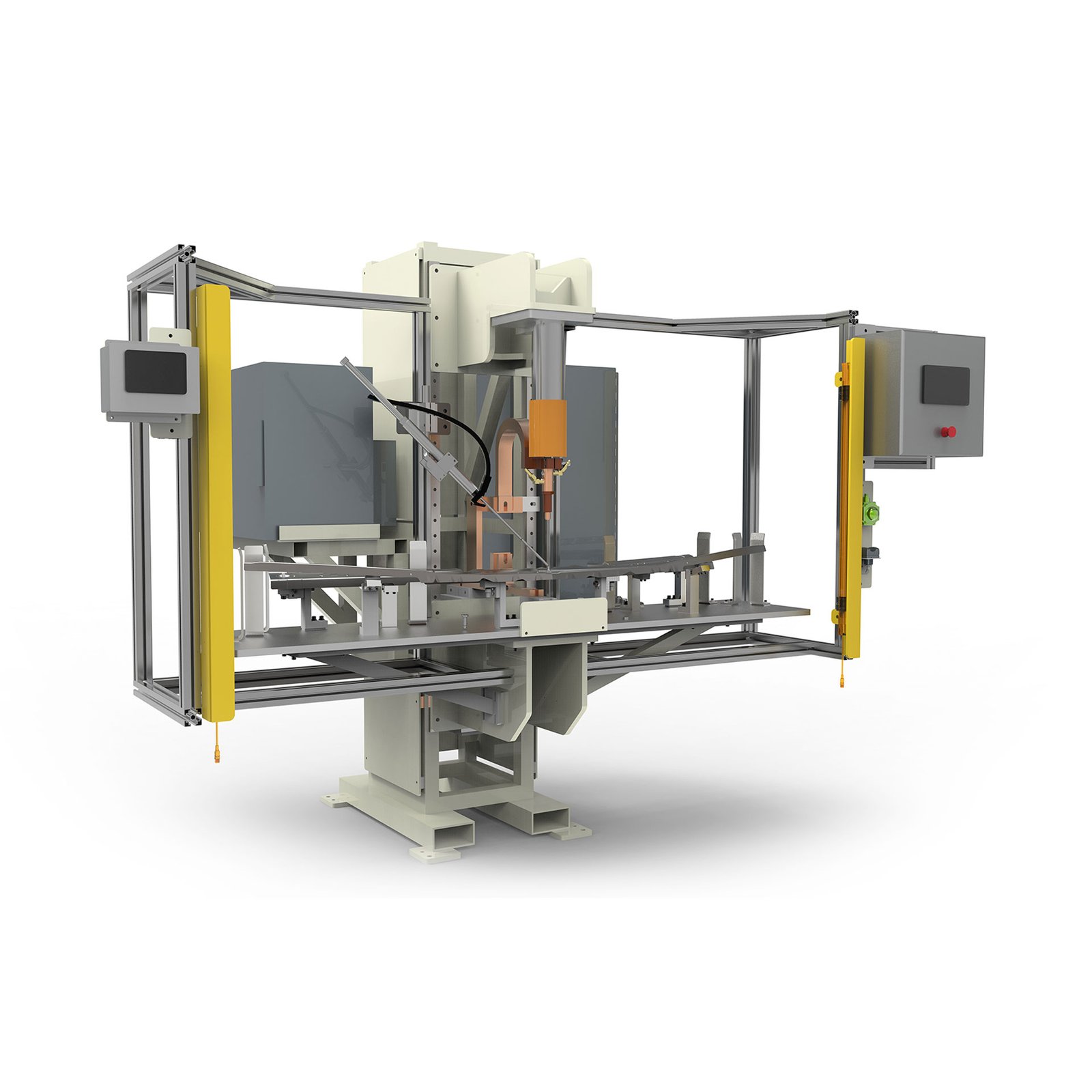

C Frame Projection Welding Machine
- Single or dual fixture option
- Quantity of weld cylinders can be 1 or 2
- Adjustable upper and lower frame
- Quick change tooling option
- Servo or air slide options
- Part eject options
C Frame Projection Welding Machine

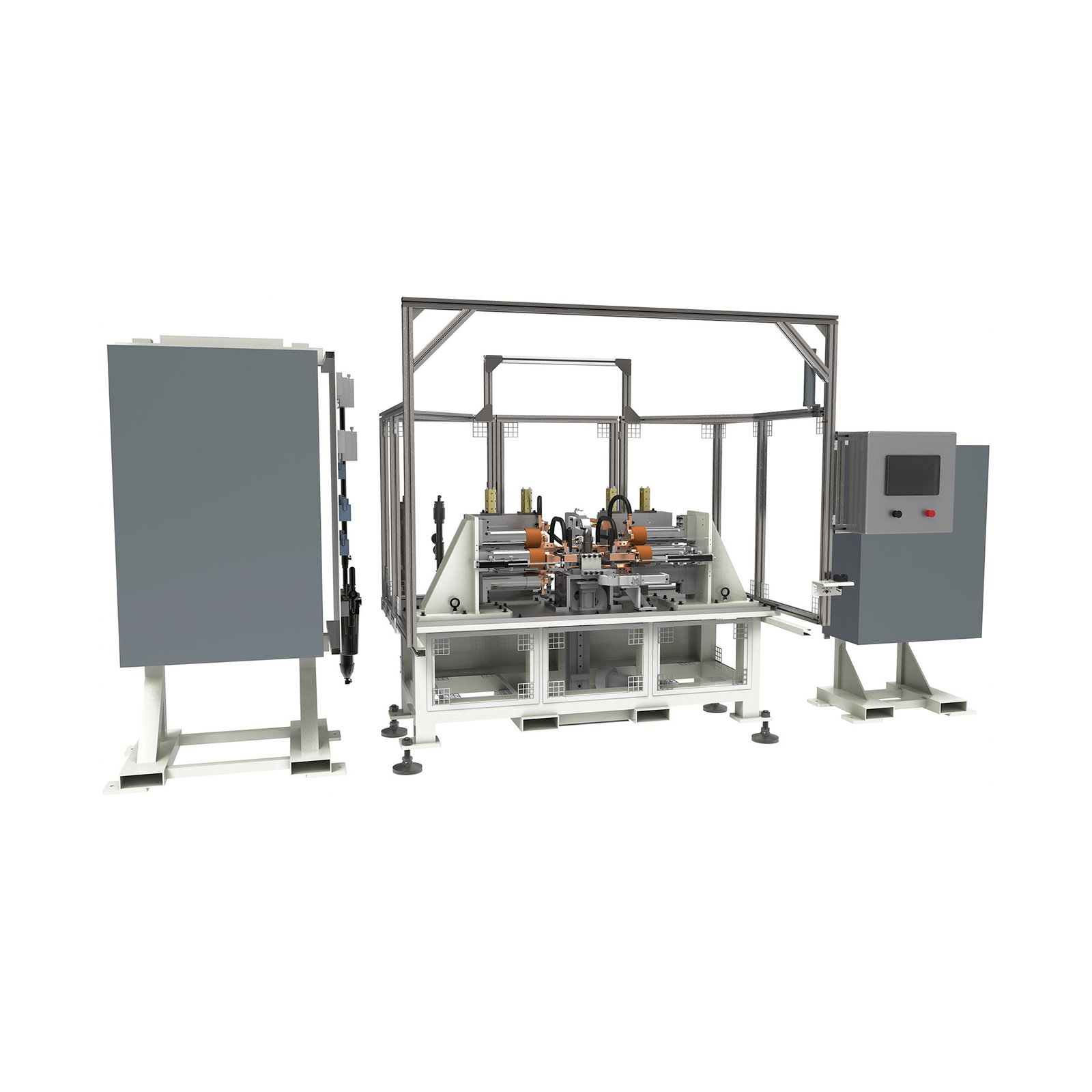

Specialty Projection Welding Machine
- Custom frame made to customer unique specification
- Single, dual or triple transformer option
- Quantity of weld cylinders can be from 1 up to 6
- Servo or air slide options
- Quick change tooling option
Specialty Projection Welding Machine
Pedestal Gun

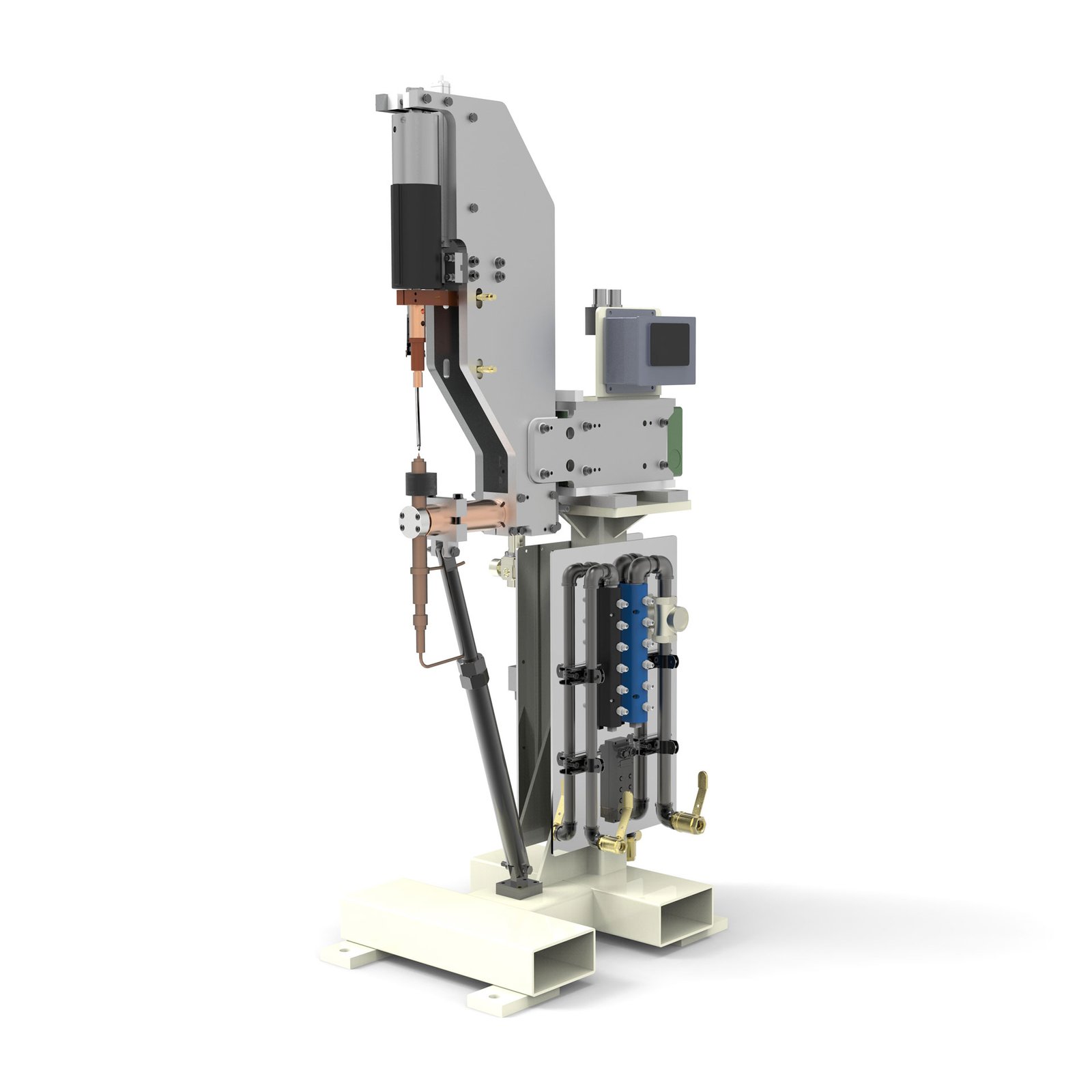

Pedestal Projection Weld Gun
- Large throat underbody options
- Standard chassis for short lead time
- Stationary arms are supported for minimal deflection
- Turn key options with water, air and fastener feeder
Pedestal Projection Weld Gun
Fixtures

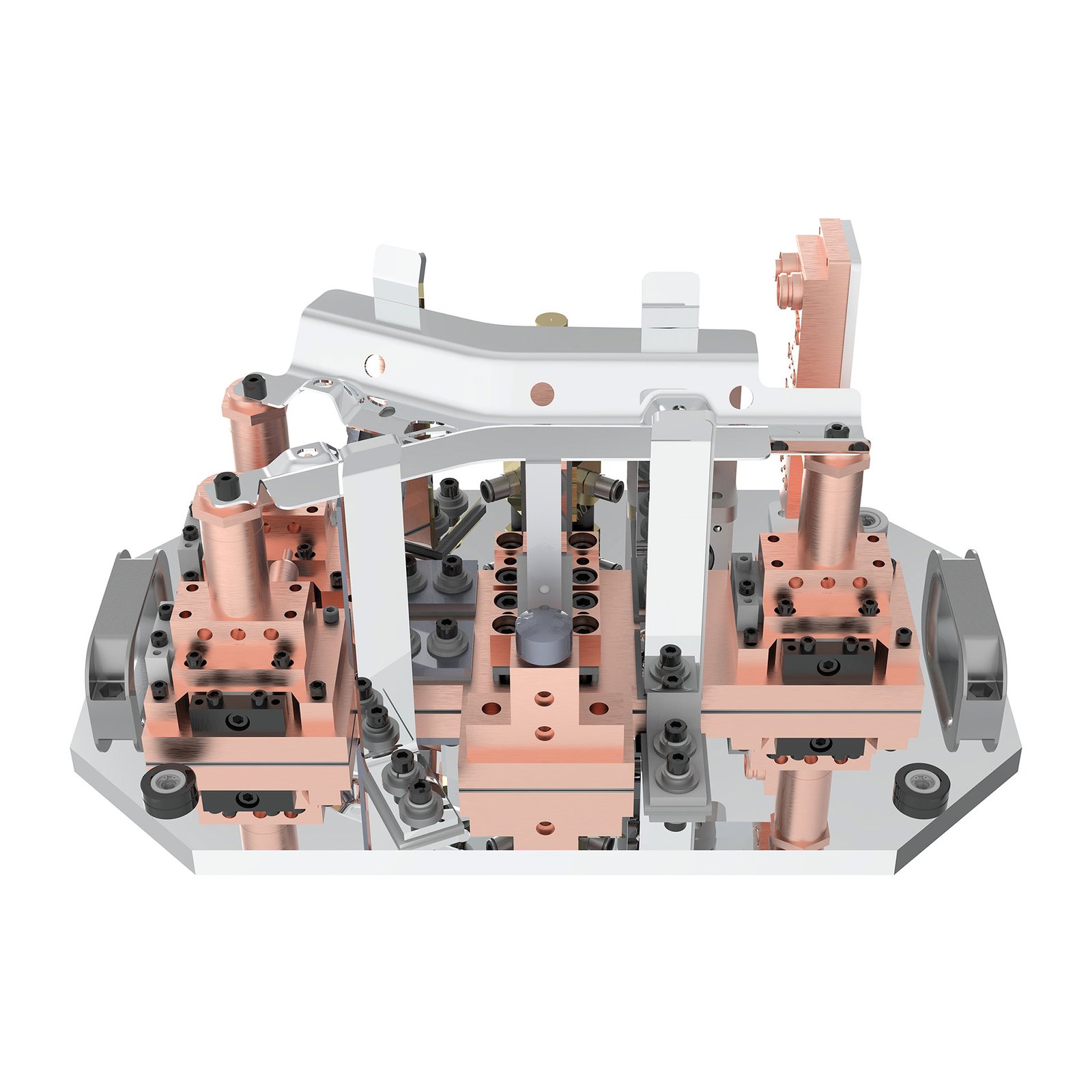

Part Fixture
- Ex. Part Fixture for left and right hand application
- All Part Fixtures are designed based on customer specifications
Part Fixture
